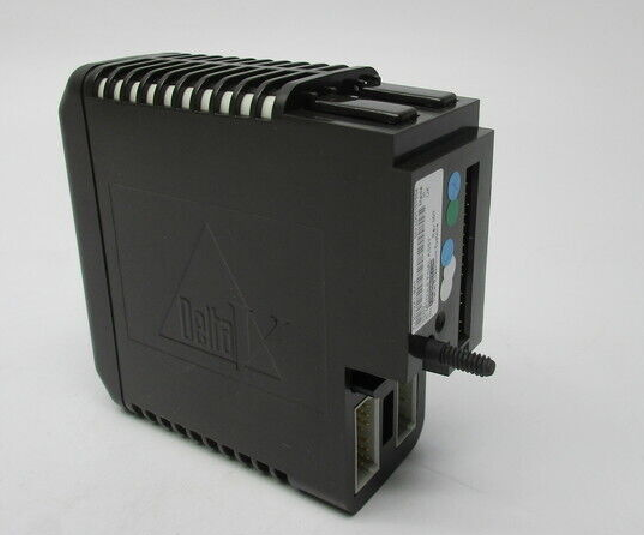

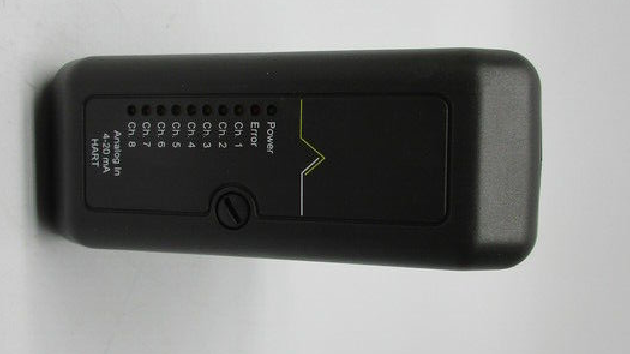

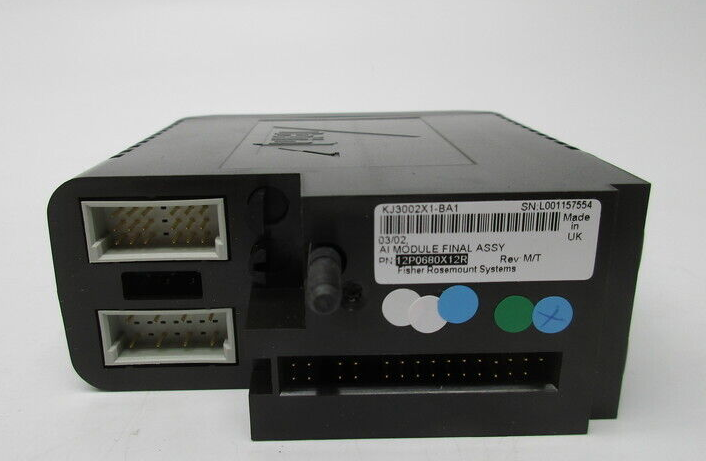

Emerson KJ3002X1-BA1 Analoge Input HART module
Tlhaloso
| Tlhahiso | Emerson |
| Mohlala | KJ3002X1-BA1 |
| Ho odara litaba | KJ3002X1-BA1 |
| Catalog | Delta v |
| Tlhaloso | Emerson KJ3002X1-BA1 Analoge Input HART module |
| Tšimoloho | Jeremane (DE) |
| Khoutu ea HS | 85389091 |
| Boemo | 16cm * 16cm * 12cm |
| Boima ba 'mele | 0.8kg |
Lintlha
KJ3002X1-BA1 2-Wire AI, 8-Channel, 4-20 mA, HART Card Hazardous Atmosphere II 3 G Nemko No. 02ATEX431U EEx nL IIC T4 Power Specifications LocalBus tekanyo ea matla 12 VDC ho 150 mA rating Bussed 20 DC field mA Field circuit rating 24 VDC at 32 mA Environmental Specifications Mocheso o Ambient 0 ho 60o C Shock 10g ½ Sinewave bakeng sa 11 msec Vibration 1mm Peak ho ea Peak ho tloha ho 5 ho ea ho 16Hz;0.5g ho tloha ho 16 ho isa ho 150Hz Litšilafatso tse Sefofaneng ISA-S71.04 -1985 Sehlopha sa G3 Mongobo o Bakang 5 ho isa ho 95% o sa Koreheleng IP 20 Litekanyetso tsa Terminal block key boemo ba A1 Tlhokomeliso: Sheba leibole ea sehlahisoa bakeng sa nomoro ea serial le sebaka le letsatsi. ea ho etsa.Sheba hape setšoantšo sa marang-rang se ka lehlakoreng le letšehali la karete.Tlhokomeliso: Sehlahisoa sena se na le litaelo tse tobileng tsa ho kenya, ho tlosoa le ho sebetsa libakeng tse kotsi.Sheba ho tokomane ea 12P2046 "DeltaV Litaelo tsa ho kenya Scalable Process Zone 2".Litaelo tse ling tsa ho kenya li fumaneha bukeng ea "Installing Your DeltaV Automation System".Motlakase oa "Removal and Insertion Field" o fanoang sesebelisoa sena, ebang ke lebaleng la theminale kapa e le matla a buss ka har'a sepalangoang, o tlameha ho tlosoa pele o tlosa kapa o hokela sesebelisoa.Tekolo ea loop ea I/O e tlameha ho phetheloa ho li-node tsohle tse nang le matla a fokolang.Karolo ena e ka tlosoa kapa ea kenngoa ha matla a tsamaiso a ntse a matlafatsoa tlas'a maemo a latelang: (Hlokomela Ke yuniti e le 'ngoe feela ka nako e ka tlosoang ka matla a tsamaiso ea tsamaiso.) • Ha e sebelisoa le KJ1501X1-BC1 System Dual DC/DC Power Supply e sebetsang ho 24 VDC kapa 12 VDC matla a ho kenya.Inductance ea mantlha ea lithapo bakeng sa matla a ho kenya e tlameha ho ba ka tlase ho 23 uH, kapa phepelo e netefalitsoeng e nang le motlakase o bulehileng oa potoloho, Ui ea 12.6 VDC le Lo e ka tlase ho 23 uH (ho kenyeletsoa le inductance ea terata).Sistimi ea rotary keying e netefatsa ho lumellana lipakeng tsa likarete tsa I/O le li-terminal blocks ka mor'a hore ho kenngoe.The terminal block e tlameha ho ba le linotlolo tse behiloeng bakeng sa karete ea I/O eo e tla sebelisoa ka eona.Fuse ea "terminal block" HA E SEBELE ho tlosoa ka matla a lebaleng a matlafalitsoeng bakeng sa li-circuits tse sa hlabeng.Tlhokomelo le Tokiso Yuniti ena ha e na likarolo tse ka sebelisoang ke basebelisi 'me ha ea lokela ho qhaqhoa ka lebaka lefe kapa lefe.Calibration ha e hlokehe.
