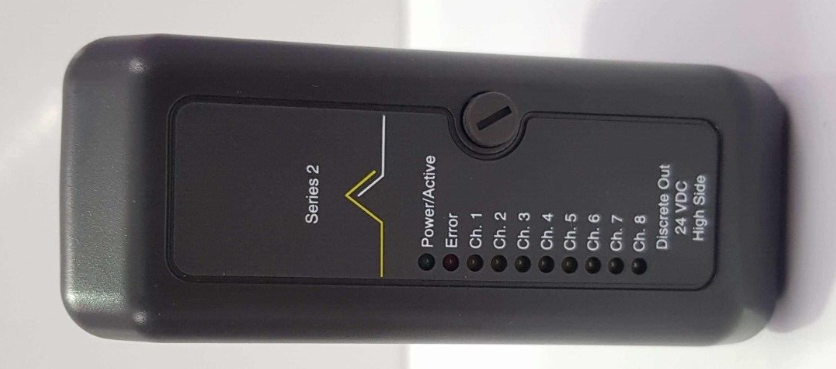

Emerson KJ3202X1-BA1 12P2536X062 high side output module
Tlhaloso
| Tlhahiso | Emerson |
| Mohlala | KJ3202X1-BA1 |
| Ho odara litaba | 12P2536X062 |
| Catalog | delta v |
| Tlhaloso | Emerson KJ3202X1-BA1 12P2536X062 high side output module |
| Tšimoloho | Jeremane (DE) |
| Khoutu ea HS | 85389091 |
| Boemo | 16cm * 16cm * 12cm |
| Boima ba 'mele | 0.8kg |
Lintlha

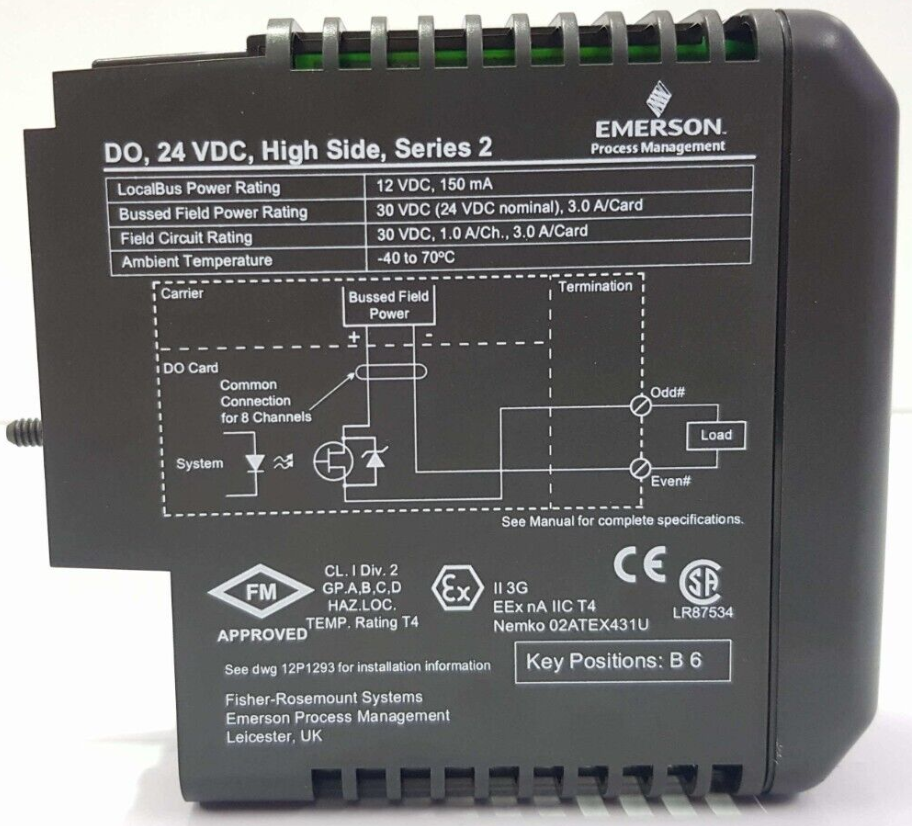

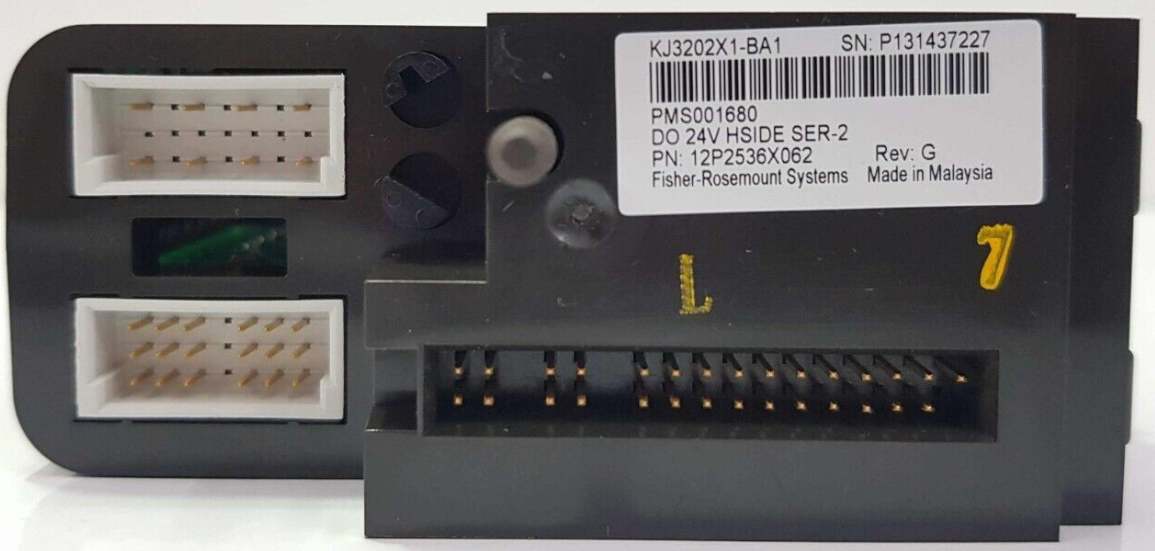

KJ3202X1-BA1 DO, 24 VDC, High-Side, Series 2 Card Hazardous Atmosphere II 3 G Nemko No. 02ATEX431U EEx nA IIC T4 Power Specifications LocalBus tekanyo ea matla 12 VDC ho 150 mA Bussed field power circuit 30 VDC 30 VDC 30 VDC ho 1 A/channel, 3 A/card Specifications Environmental Ambient Mocheso -40 ho 70o C Shock 10g ½ Sinewave bakeng sa 11 msec Vibration 1mm Peak ho Peak ho tloha 5 ho ea ho 16Hz;0.5g ho tloha ho 16 ho isa ho 150Hz Litšilafatso Tse Sefofaneng ISA-S71.04 -1985 Sehlopha sa G3 Mongobo o Bakang 5 ho isa ho 95% o sa Thibetseng IP 20 Terminal block key position B6 Tlhokomeliso: Sheba leibole ea sehlahisoa bakeng sa nomoro ea serial le sebaka le letsatsi. ea ho etsa.Sheba hape setšoantšo sa marang-rang se ka lehlakoreng le letšehali la karete.Tlhokomeliso: Sehlahisoa sena se na le litaelo tse tobileng tsa ho kenya, ho tlosoa le ho sebetsa libakeng tse kotsi.Sheba ho tokomane ea 12P2046 "DeltaV Litaelo tsa ho kenya Scalable Process Zone 2".Litaelo tse ling tsa ho kenya li fumaneha bukeng ea "Installing Your DeltaV Automation System".Motlakase oa "Removal and Insertion Field" o fanoang sesebelisoa sena, ebang ke lebaleng la theminale kapa e le matla a buss ka har'a sepalangoang, o tlameha ho tlosoa pele o tlosa kapa o hokela sesebelisoa.Karolo ena e ka tlosoa kapa ea kenngoa ha matla a tsamaiso a ntse a matlafatsoa tlas'a maemo a latelang: (Hlokomela Ke yuniti e le 'ngoe feela ka nako e ka tlosoang ka matla a tsamaiso ea tsamaiso.) • Ha e sebelisoa le KJ1501X1-BC1 System Dual DC/DC Power Supply e sebetsang ho 24 VDC kapa 12 VDC matla a ho kenya.Inductance ea mantlha ea lithapo bakeng sa matla a ho kenya e tlameha ho ba ka tlase ho 23 uH, kapa phepelo e netefalitsoeng e nang le motlakase o bulehileng oa potoloho, Ui ea 12.6 VDC le Lo e ka tlase ho 23 uH (ho kenyeletsoa le inductance ea terata).• Li-circuits tse sa cheseheng li LOKELA ho matlafatsoa pele li ntša le ho kenya sehlahisoa sena.Fuse ea "terminal block" HA E SEBELE ho tlosoa ka matla a lebaleng a matlafalitsoeng bakeng sa li-circuits tse sa hlabeng.Tlhokomelo le Tokiso Yuniti ena ha e na likarolo tse ka sebelisoang ke basebelisi 'me ha ea lokela ho qhaqhoa ka lebaka lefe kapa lefe.Calibration ha e hlokehe.Litumello Tse Ling Tsa Tšireletseho
