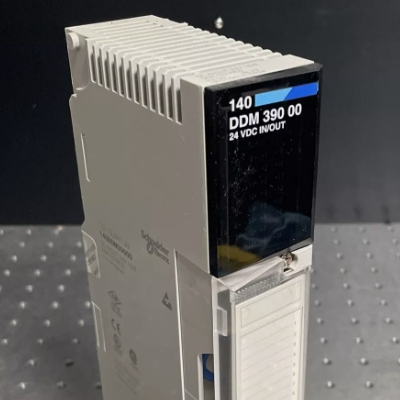

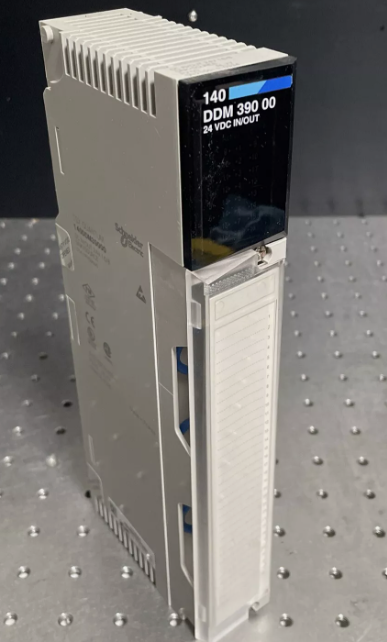

Schneider 140DDM39000 discrete I/O module Modicon Quantum 16 I 24 V DC 8 O boemo bo tiileng
Tlhaloso
| Tlhahiso | Schneider |
| Mohlala | 140DDM39000 |
| Ho odara litaba | 140DDM39000 |
| Catalog | Quantum 140 |
| Tlhaloso | Schneider 140DDM39000 discrete I/O module Modicon Quantum 16 I 24 V DC 8 O boemo bo tiileng |
| Tšimoloho | Franch(FR) |
| Khoutu ea HS | 3595861133822 |
| Boemo | 5cm * 16.5cm * 31cm |
| Boima ba 'mele | 0.5kg |
Lintlha
| Mefuta e mengata ea Sehlahisoa | Modicon Quantum automation sethaleng |
|---|---|
| Sehlahisoa kapa Mofuta oa Karolo | Mojule oa I/O o kopaneng oa discrete |
| Nomoro ea I/O e ikhethileng | 24 |
| Nomoro e ikhethang ea ho kenya | 16 2 lihlopha tsa 8 |
|---|---|
| Maikutlo a ikhethileng | Sekela |
| Ho sebetsana le tlhokahalo | 1 lentsoe le kenyang 0.5 lentsoe la tlhahiso |
| Meeli ea maqhubu a marang-rang | 47…63 Hz |
| Voltage e ikhethang ea ho kenya | 24 V DC |
| Meeli ea matla a ho kenya | 30 V <= 1 V nakong ea potoloho e le 'ngoe 56 V nakong ea 1,3 ms <= 1 V nakong ea 10s |
| Voltage state 0 e tiisitsoe | -3...5 V |
| Voltage state 1 e tiisitsoe | 15...30 V |
| Boemo ba hajoale 0 tiisetso | <= 0.5 mA |
| Naha ea hajoale e netefalitsoe | = 2 mA |
| Kenyelletso ea ho kenya | 2500 Ohm |
| Nomoro ea tlhahiso e ikhethileng | 8 2 lihlopha tsa 4 |
| Mofuta o ikhethileng oa tlhahiso | Boemo bo tiileng |
| Dipoelo tse fapaneng | Sekela |
| Discrete output voltage | 24 V |
| Meeli ea matla a tsoang | 19.2 ... 30 V DC e tloaelehileng 56 V DC nakong ea 1,3 ms |
| Boholo ba thepa ea hona joale | <= 0.5 A ka ntlha <= 2 A sehlopha ka seng <= 4 A mojule ka nngwe |
| Ho theoha ho hoholo ha motlakase | <0.4 V 0.5 A |
| Absolute palo e kahodimodimo tlhahiso | 5 A nakong ea 500 µs ka ntlha |
| Boholo ba inductance ea mojaro | 500 mH 4 Hz |
| Boholo ba bokhoni ba ho jara | 50 µF |
| Boholo ba ho lutla ha hona joale | 0.4 mA 30 V DC |
| Nako ea karabelo ho tlhahiso | <= 1 ms sebakeng sa 0 ho isa sebakeng sa 1 <= 1 ms sebakeng sa 1 ho isa sebakeng sa 0 |
| Mofuta oa Tšireletso | Ho tsoa ka khatello ea motlakase ea nakoana Ho kenyelletsoa ka mohanyetsi o fokolang Tšireletso ea ka hare ka 5 A fuse ka sehlopha |
| Lintlha tse amanang le fuse | 5 A sehlopha ka seng |
| Ho itšehla thajana pakeng tsa sehlopha | 500 Vrms bakeng sa motsotso o le mong |
| Ho itšehla thajana pakeng tsa sehlopha le bese | 1780 Vrms bakeng sa motsotso o le mong |
| Pontšo ea phoso | Fuse e bululetsoeng ka tlhahiso Ho lahleheloa ke matla a tšimo ha ho hlahisoa |
| Ho felloa ke matla | 1.75 W + (0.36 x ntlha ea ho kenya e sebetsa) + (1.1 kakaretso ea phallo ea sephetho sa hajoale) |
| Pontšo ea sebaka | bakeng sa puisano ea libese e teng (Active) 1 LED (e tala) ha ho na motlakase ho tlhahiso le ho kenya (F) 1 LED (e khubelu) bakeng sa tlhahiso e buletsoe 2 LEDs (e tala) bakeng sa phoso e fumanoeng sebakeng sa ho kenya li-LED tsa 2 (tse khubelu) bakeng sa phoso e fumanoeng sebakeng sa tlhahiso ea 2 LEDs (e khubelu) |
| Ho tshwaya | CE |
| Tlhokahalo ea hona joale ea libese | 330 mA |
| Boima bo kahare | 0.7 lb(US) (0.3 lik'hilograma) |
| Ho hanyetsa ho tsoa ha electrostatic | 4 kV ikopanye le IEC 801-2 8 kV moeeng IEC 801-2 |
|---|---|
| Ho hanyetsa masimo a electromagnetic | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient moea mocheso bakeng sa tshebetso | 32…140 °F (0…60 °C) |
| Ambient Air Mocheso bakeng sa Polokelo | -40…185 °F (-40…85 °C) |
| Mongobo o Batlang | 95% ntle le condensation |
| Bophahamo ba ho sebetsa | <= 16404.2 ft (5000 m) |
| Litekanyetso | CSA C22.2 No 142 UL 508 FM Sehlopha sa 1 Karolo ea 2 |
| Setifikeiti sa Sehlahisoa | kl |
| Sehlopha | US1PC2118155 |
|---|---|
| Theolelo Kemiso | PC21 |
| GTIN | 3595861127036 |
| Returnability | Ee |
| Naha ea tlhaho | CN |
