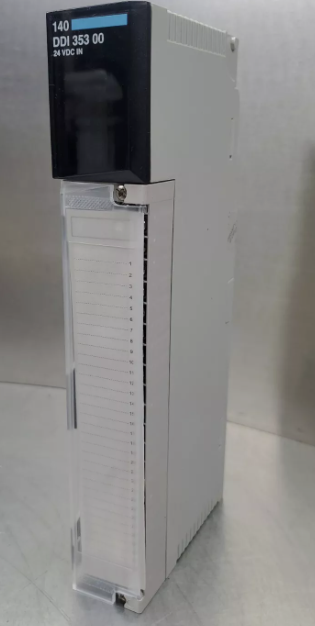

Schneider 140DDI35300 discrete input module Modicon Quantum 32 I 24 V DC
Tlhaloso
| Tlhahiso | Schneider |
| Mohlala | 140DDI35300 |
| Ho odara litaba | 140DDI35300 |
| Catalog | Quantum 140 |
| Tlhaloso | Schneider 140DDI35300 discrete input module Modicon Quantum 32 I 24 V DC |
| Tšimoloho | Franch(FR) |
| Khoutu ea HS | 3595861133822 |
| Boemo | 5cm * 16.5cm * 31cm |
| Boima ba 'mele | 0.5kg |
Lintlha
| Mefuta e mengata ea lihlahisoa | Modicon Quantum automation sethaleng |
|---|---|
| Sehlahisoa kapa mofuta oa karolo | Li-module tsa motlakase tse tlase tsa dc discrete input |
| Nomoro e ikhethang ea ho kenya | 32 |
| Sehlopha sa likanale | 4 |
|---|---|
| Kenyelletso ea kelello | E ntle (sinki) |
| Voltage e ikhethang ea ho kenya | 24 V DC |
| Meeli ea matla a ho kenya | 19.2...30 V |
| Voltage state 1 e tiisitsoe | 15...30 V DC |
| Voltage state 0 e tiisitsoe | -3...5 V DC |
| Naha ea hajoale e netefalitsoe | >= 2 mA ho Rona = 5.5 V le Uin = 0 V |
| Boemo ba hajoale 0 tiisetso | <= 0.5 mA |
| Ho sebetsana le tlhokahalo | 2 mantsoe a kenyang |
| Kenyelletso ea ho kenya | 2500 Ohm |
| Boholo ba ho lutla ha hona joale | 200 mA ho Rona = 5.5 V le Uin = 4 V |
| Kenyeletso e phahameng ka ho fetesisa | 30 V e tsoelang pele 56 V nakong ea 1.3 ms ho senyeha ha sekhahla |
| Nako ea ho arabela | <= 1 ms ho tloha seterekeng sa 0 ho isa seterekeng sa 1 <= 1 ms ho tloha seterekeng sa 1 ho isa seterekeng sa 0 |
| Mofuta oa tšireletso | Tšireletso ea ho kenya letsoho ka ho hanyetsa matla |
| Ho felloa ke matla | 1.7 W + (0.36 x palo ea lintlha ho) |
| Ho itšehla thajana pakeng tsa sehlopha le bese | 1780 Vrms bakeng sa motsotso o le mong |
| Ho itšehla thajana pakeng tsa sehlopha | 500 Vrms bakeng sa motsotso o le mong |
| Pontšo ea sebaka | 1 LED (e tala) bakeng sa puisano ea libese e teng (Ea sebetsa) LED e 1 (e khubelu) bakeng sa phoso e ka ntle e fumanoeng (F) Li-LED tse 32 (tse tala) bakeng sa boemo ba ho kenya |
| Ho tshwaya | CE |
| Tlhokahalo ea hona joale ea libese | 330 mA |
| Sebopeho sa module | Standard |
| Boima bo kahare | 0.3 lik'hilograma |
| Litekanyetso | CSA C22.2 No 142 UL 508 |
|---|---|
| Setifikeiti sa lihlahisoa | C-Tšoaea DNV RINA RMRS BV GOST ABS |
| Ho hanyetsa ho tsoa ha electrostatic | Khokahano ea 4 kV e lumellanang le IEC 801-2 8 kV moeeng e lumellanang le IEC 801-2 |
| Ho hanyetsa masimo a electromagnetic | 10 V/m 80…2000 MHz e lumellana le IEC 801-3 |
| Ambient moea mocheso bakeng sa tshebetso | 0…60 °C |
| Ambient moea mocheso bakeng sa polokelo | -40…85 °C |
| Mongobo o amanang | 95% ntle le condensation |
| Bophahamo ba ho sebetsa | <= 5000 m |
