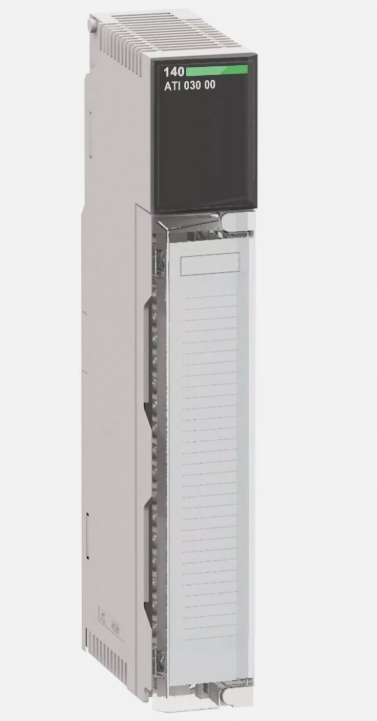

Schneider 140ATI03000 analog input module Modicon Quantum 8 I thermocouple
Tlhaloso
| Tlhahiso | Schneider |
| Mohlala | 140ATI03000 |
| Ho odara litaba | 140ATI03000 |
| Catalog | Quantum 140 |
| Tlhaloso | Schneider 140ATI03000 analog input module Modicon Quantum 8 I thermocouple |
| Tšimoloho | Franch(FR) |
| Khoutu ea HS | 3595861133822 |
| Boemo | 5cm * 16.5cm * 31cm |
| Boima ba 'mele | 0.5kg |
Lintlha
| Mefuta e mengata ea Sehlahisoa | Modicon Quantum automation sethaleng |
|---|---|
| Sehlahisoa kapa Mofuta oa Karolo | Mojule oa ho kenya analogue |
| Mofuta oa sefe | Notch filter - 3 dB ho 50/60 Hz Phallo e tlase ea palo e le 'ngoe - 3 dB ho 20 Hz |
| Nomoro ea ho kenya analogue | 8 |
|---|---|
| Ho sebetsana le tlhokahalo | 10 mantsoe a kenyang |
| Mofuta oa ho kenya analogue | Thermocouple - 210...760 °C thermocouple J Thermocouple - 270...1000 °C thermocouple E Thermocouple - 270...1370 °C thermocouple K Thermocouple - 270...400 °C thermocouple T Thermocouple - 50...1665 °C thermocouple R Thermocouple - 50...1665 °C thermocouple S |
| Tharollo ea tlhahiso ea analogue | 16 likotoana |
| Phoso ea ho nepahala ka botlalo | +/- 2 °C mmoho + 0.1 % ea ho bala thermocouple E +/- 2 °C mmoho + 0.1 % ea ho bala thermocouple J +/- 2 °C mmoho + 0.1 % ea ho bala thermocouple K +/- 2 °C mmoho + 0.1 % ea ho bala thermocouple T +/- 4 °C mmoho + 0.1 % ea ho bala thermocouple R +/- 4 °C mmoho + 0.1 % ea ho bala thermocouple S |
| Phoso ea linearity | 1 °C, 0.1 °C, 1 F, 0.1 F - 210...760 °C 1 °C, 0.1 °C, 1 F, 0.1 F - 270...1000 °C 1 °C, 0.1 °C, 1 F, 0.1 F - 270...1370 °C 1 °C, 0.1 °C, 1 F, 0.1 F - 270...400 °C 1 °C, 0.1 °C, 1 F, 0.1 F - 50...1665 °C |
| Ho nepahala ho hoholeha ho latela mocheso | 0.15 µV/°C + 0.0015 % ea ho bala/°C matla a phahameng a matla a tlase |
| Ho hana mokhoa o tloaelehileng | > - 120 dB 50/60 Hz |
| Ho itšehla thajana pakeng tsa likanale le bese | 1780 V AC 60 s 2500 V DC 60 s |
| Ho itšehla thajana pakeng tsa likanale | 300 V DC 220 V AC |
| Nako ea ntlafatso | 1000 ms |
| Mofuta oa phoso | Mohala o robehileng Sekala sa overtacking |
| Ho tshwaya | CE |
| Matšeliso a mateano a batang | Hare 32…140 °F (0…60 °C) |
| Pontšo ea sebaka | bakeng sa puisano ea libese e teng (Active) 1 LED (e tala) bakeng sa phoso ea kantle 1 LED (e khubelu) hobane mocha o buletsoe li-LED tse 8 (tse tala) bakeng sa phoso ea kanal 8 LEDs (e khubelu) |
| Tlhokahalo ea hona joale ea libese | 280 mA |
| Ho felloa ke matla ho W | 1.5 W |
| Sebopeho sa module | Standard |
| Boima bo kahare | 0.7 lb(US) (0.3 lik'hilograma) |
| Litekanyetso | CSA C22.2 No 142 UL 508 |
|---|---|
| Setifikeiti sa Sehlahisoa | kl FM Sehlopha sa 1 Karolo ea 2 |
| Ho hanyetsa ho tsoa ha electrostatic | 4 kV ikopanye le IEC 801-2 8 kV moeeng IEC 801-2 |
| Ho hanyetsa masimo a electromagnetic | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient moea mocheso bakeng sa tshebetso | 32…140 °F (0…60 °C) |
| Ambient Air Mocheso bakeng sa Polokelo | -40…185 °F (-40…85 °C) |
| Mongobo o Batlang | 95% ntle le condensation |
| Bophahamo ba ho sebetsa | <= 16404.2 ft (5000 m) |
