AC31 le letoto le fetileng (mohlala, Sigmatronic, Procontic) ha li sa sebetsa mme li ile tsa nkeloa sebaka ke sethala sa AC500 PLC.

LITŠOANTŠISO TSA SEHLOOHO LE MELEMO

• Ho tswa ho • Karete ya segokanyimho ya matshwao e nang le matshwao a 4 a dynamic le 2 tachometer (lebelo), bakeng sa karete ya tshireletso ya mochini ya MPC4.
• Lihokelo tsa Screw-terminal (li-terminals tse 48) bakeng sa likhokahano tsohle tsa ho kenya kapa tse tsoang
• E na le li-relay tse 4 tse ka amahanngoang le matšoao a alamo, tlas'a taolo ea software
• Lipoelo tse 32 tse lokiselitsoeng ka botlalo (li-jumper tse ka khethoang) ho likarete tsa relay tsa IRC4 le RLC16
• Matshwao a sensara a "raw" a buffered le matshwao a tlhahiso ya analoge (voltage kapa jwale) bakeng sa dikanale tsa vibrate
• Tšireletso ea EMI bakeng sa lintho tsohle tse kenang le tse hlahisoang • Ho kenya le ho tlosoa ha likarete ka ho toba (hot-swappable)

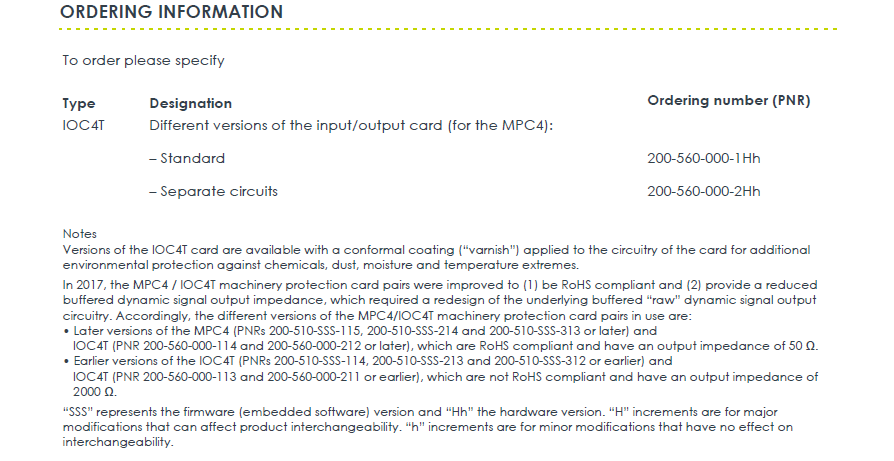

• E fumaneha ka mefuta ea "standard" le "separate circuits".

Karete ea IOC4T

Karete ea ho kenya / ho tsoa ea IOC4T e sebetsa joalo ka sebopeho sa lets'oao bakeng sa karete ea ts'ireletso ea mochini oa MPC4, E kentsoe ka morao ho rack mme e hokahana ka kotloloho le sefofane sa rack ka lihokelo tse peli.

Karete e 'ngoe le e' ngoe ea IOC4T e amahanngoa le karete ea MPC4 e tsamaellanang 'me e behiloe ka kotloloho ka mor'a eona rack (ABE04x kapa ABE056). IOC4T e sebetsa ka mokhoa oa makhoba 'me e buisana le MPC4, ka sehokelo P2, e sebelisa sebopeho sa Industry Pack (IP).

Karolo e ka pele ea IOC4T (ka morao ho rack) e na le lihokelo tsa li-terminal strip bakeng sa wiring
ho likhoele tsa phetisetso tse tsoang liketane tsa ho lekanya (li-sensor le / kapa li-conditioner tsa matšoao). Lihokelo tsa screw-terminal li boetse li sebelisetsoa ho kenya matšoao ohle ho tsoa le ho hlahisa matšoao ohle ho sistimi efe kapa efe ea taolo ea kantle.

Karete ea IOC4T e sireletsa lintho tsohle tse kenngoeng le tse hlahisoang khahlano le tšitiso ea motlakase (EMI) le lipontšo tsa mats'oao hape e kopana le maemo a lumellanang le motlakase (EMC).

IOC4T e hokahanya matshwao a matla (vibration) le lebelo ho tloha ho disensara ho ya ho MPC4.
Matshwao ana, hang ha a sebetswa, a fetisetswa ho IOC4T mme a fumanehe ho terminal
hlobolisa phanele ea eona e ka pele. Bakeng sa matšoao a matla, li-converter tse 'nè tsa li-digital-to-analog (DACs) li fana ka liphello tse lekantsoeng tsa matšoao ho tloha ho 0 ho ea ho 10 V. Ho phaella moo, li-converter tse 'nè tsa onboard voltage-to-current li lumella lipontšo hore li fanoe e le liphello tsa morao-rao ho 4 ho 20 mA (jumper e khethiloeng).

IOC4T e na le li-relay tse 'ne tsa lehae tse ka hlahisoang ke matšoao afe kapa afe a khethehileng a tlas'a taolo ea software. Ka mohlala, tsena li ka sebelisoa ho bontša phoso ea MPC4 kapa bothata bo fumanoeng ke alamo e tloaelehileng (Sensor OK, Alarm le Danger) ts'ebetsong e tloaelehileng.

Ntle le moo, mats'oao a 32 a dijithale a emelang lialamo a fetisetsoa mokokotlong oa rack mme a ka sebelisoa ke likarete tsa boikhethelo tsa RLC16 le / kapa likarete tse bohlale tsa IRC4 tse kentsoeng rack (jumper selectable).
