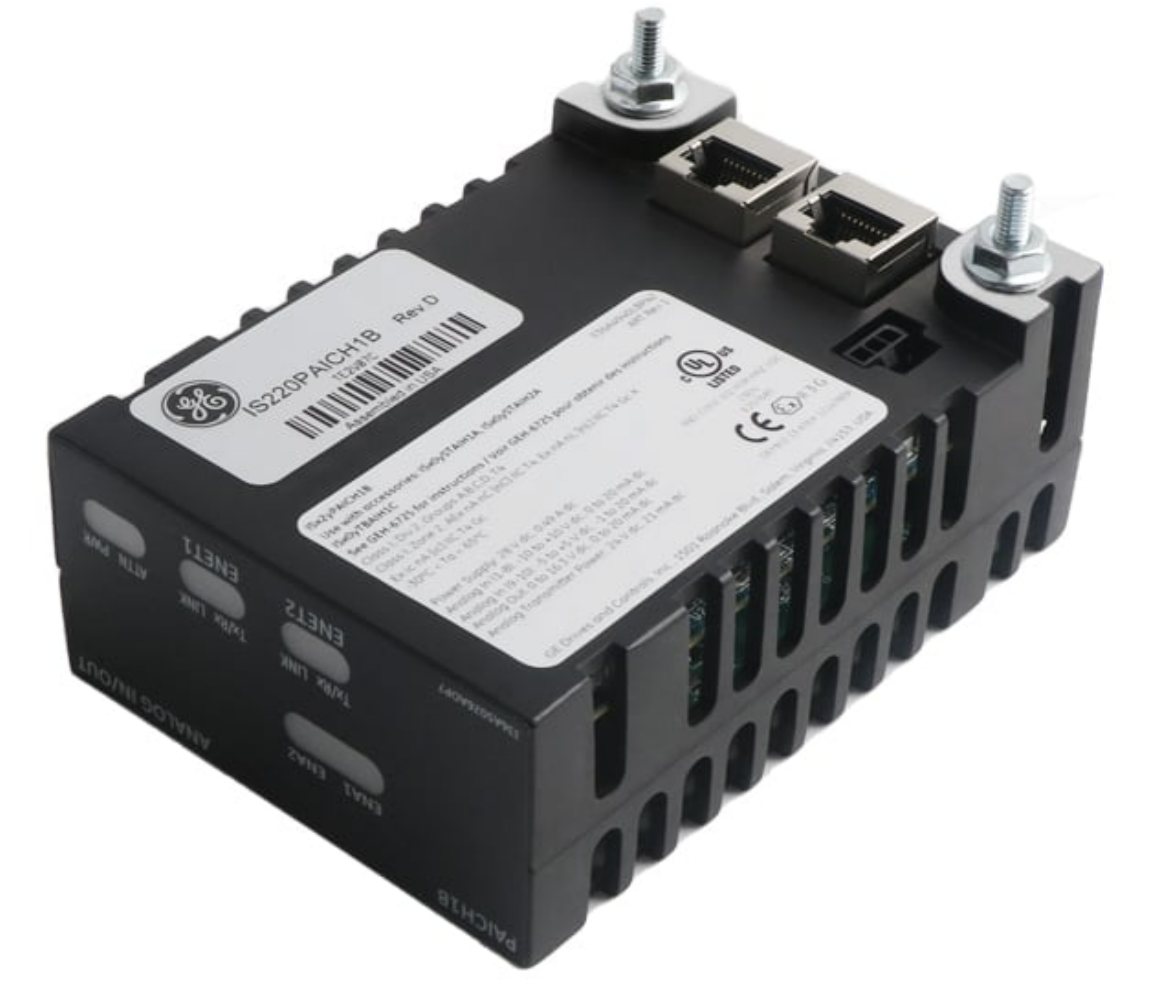

GE IS220PAICH1B ANALOGIN IN/OUT MODULE
Tlhaloso
| Tlhahiso | GE |
| Mohlala | Setšoantšo sa IS220PAICH1B |
| Ho odara litaba | Setšoantšo sa IS220PAICH1B |
| Catalog | MAREKA VIe |
| Tlhaloso | GE IS220PAICH1B ANALOGIN IN/OUT MODULE |
| Tšimoloho | United States (US) |
| Khoutu ea HS | 85389091 |
| Boemo | 16cm * 16cm * 12cm |
| Boima ba 'mele | 0.8kg |
Lintlha
IS220PAICH1B mohlala ke karolo ea analog input / output pakete ea letoto la Mark VI. Moetso ona ke mofuta oa bobeli oa li-unit tsa PAIC 'me o sebetsa ka matla a fokolang a fapaneng ha a bapisoa le a mofuta o fetileng oa pakete ea PAIC.
3.1 PAIC le YAIC Analog I/O Modules Metsoako e latelang ea I/O ea pakete le boto ea terminal e lumelletsoe ho sebelisoa libakeng tse kotsi:
• Tšoaea VIe Analog I/O pakete IS220PAICH1A e nang le liboto tsa terminal (lisebelisoa) IS200STAIH1A, IS200STAIH2A, kapa IS200TBAIH1C • Mark VIe Analog I/O pakete IS220PAICH1B e nang le liboto tsa theminale (lisebelisoa) IS200STAIH20A,1AH10 IS200TBAIH1C • Tšoaea VIeS Safety Analog I/O pakete IS220YAICS1A e nang le liboto tsa terminal (lisebelisoa) IS200STAIS1A, IS400STAIS1A, IS200STAIS2A, IS400STAIS2A, IS200TBAIS1C, kapa IS400TBAISSYA Safety patsi ea IS100TBAISSO1C2000TBAISSO1C1C200TBISSYA = 2 kapa 4 le y = 0 kapa 1) e nang le liboto tsa terminal (lisebelisoa) ISx0ySTAIS1A, ISx0ySTAIS2A, kapa ISx0yTBAIS1C 3.1.1 Litekanyetso tsa Motlakase Ntho e Min Nominal Max Units Power Supply Voltage PAICH1B / YAICS1B: 22.5 PAICHAB1B1B / 22.5 PAICS1BICHA / YAICS1B1B / YAICS1B1B / YAICS1B1B. 24.0/28.0 PAICH1A / YAICS1A: 28.0 28.6 V dc Hajoale — — 0.49 A dc Analog Inputs (1-8) Voltage -10 — 10 V dc Hajoale 0 — 20 mA dc Analog Inputs (9-5c2 0 Current - 10 mA) Hona joale dc Analog Outputs Voltage 0 — 16.3 V dc Hajoale 0 — 20 mA dc Analog Transmitter Power Voltage 22.8 24.0 25.2 V dc Hajoale — — 21 mA d
