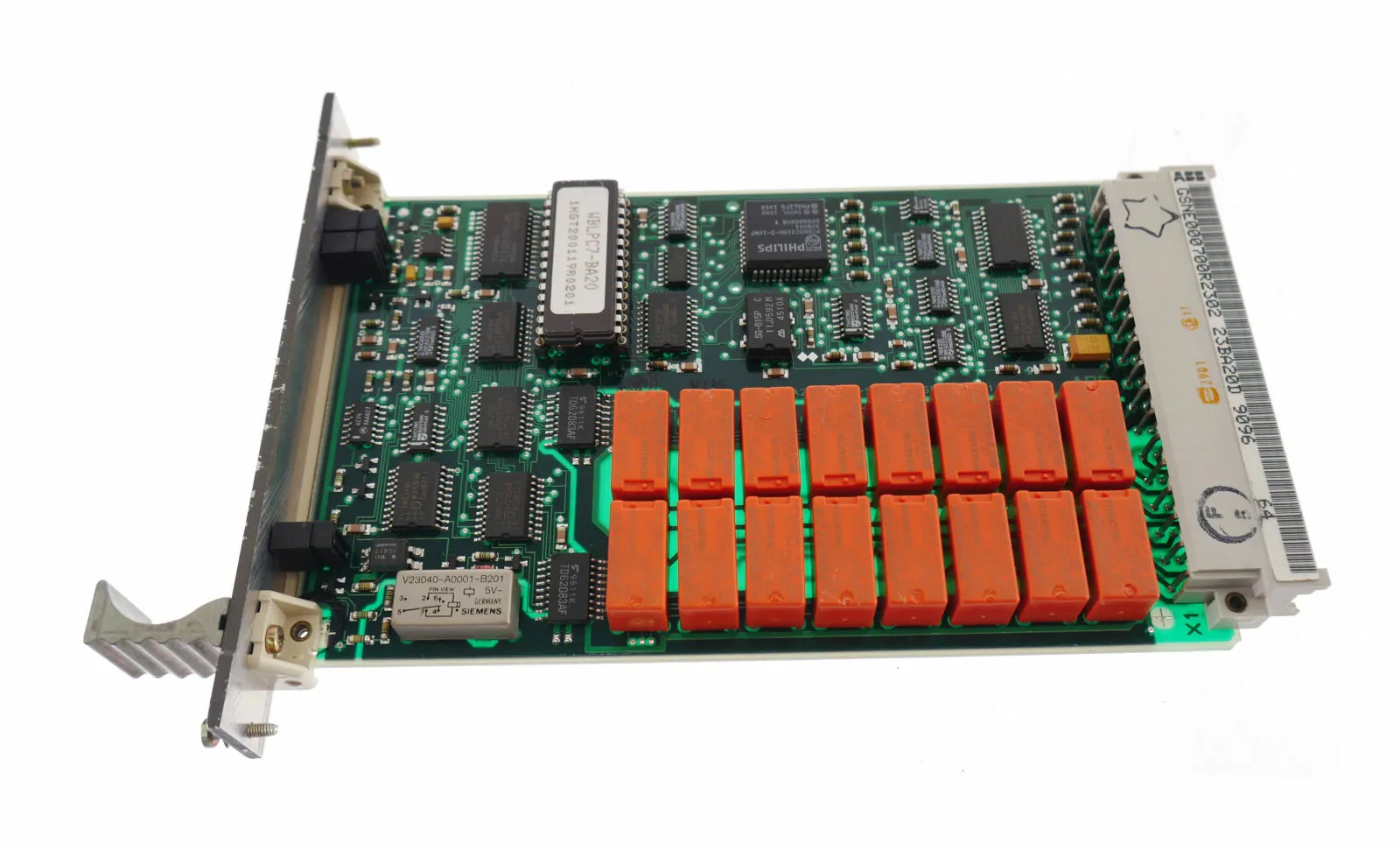

ABB 23BA20 GSNE000700R5312 Binary Output Board
Tlhaloso
| Tlhahiso | ABB |
| Mohlala | 23BA20 |
| Ho odara litaba | GSNE000700R5312 |
| Catalog | Ho laola |
| Tlhaloso | ABB 23BA20 GSNE000700R5312 Binary Output Board |
| Tšimoloho | United States (US) |
| Khoutu ea HS | 85389091 |
| Boemo | 16cm * 16cm * 12cm |
| Boima ba 'mele | 0.8kg |
Lintlha

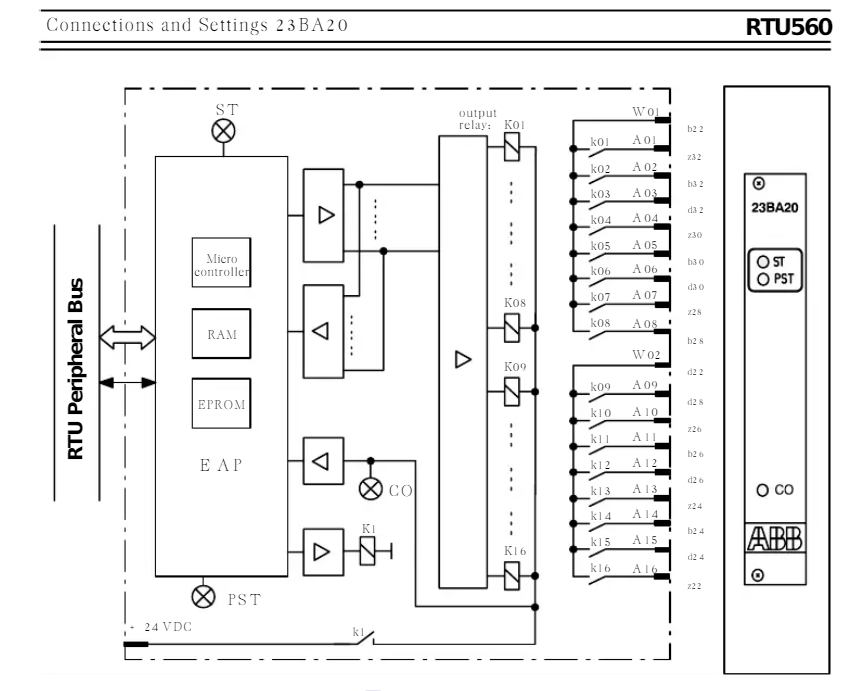

Boto ea 23BA20 e na le li-relay tse leshome le metso e ts'eletseng, lihlopha tse peli tsa likhokahano tse robeli li na le phetoho e tšoanang e tšoanang.
Sena se lumella ho arola liteishene tsa tlhahiso feela mehloling e 'meli e fapaneng ea matla a motlakase.
ProcessingfunctionThe I/O micro controller (EAP Ein-Ausgabe-Prozes-sor /Input- output processor) e kenya tšebetsong tlhahiso efe kapa efe e qobelloang ke VAP ea CMU (CMU = communicationunit) ka kopo ea tlhahiso ea taelo.
EAP e laola nako ea phalliso ea molumo ka boleng ba nako ea nako ea "loadedpulse".
Outputmonitoringa andsupervisionSephetho sefe kapa sefe se hlahlojoa le ho beoa leihlo ke EAP ka liteko tse fapaneng le mesebetsi ea tlhokomelo:
---pattern ea tlhahiso e baloa morao pele tlhahiso e kengoa tšebetsong--- 24 V DC ho tloha beseng e ka morao ho chencha li-relays e behiloe leihlo nakong ea ts'ebetso ea ho tsoa---mothapo.
nako e laoloa ke EAP--- phoso efe kapa efe e bonoang e bontšoa ke li-LED.
